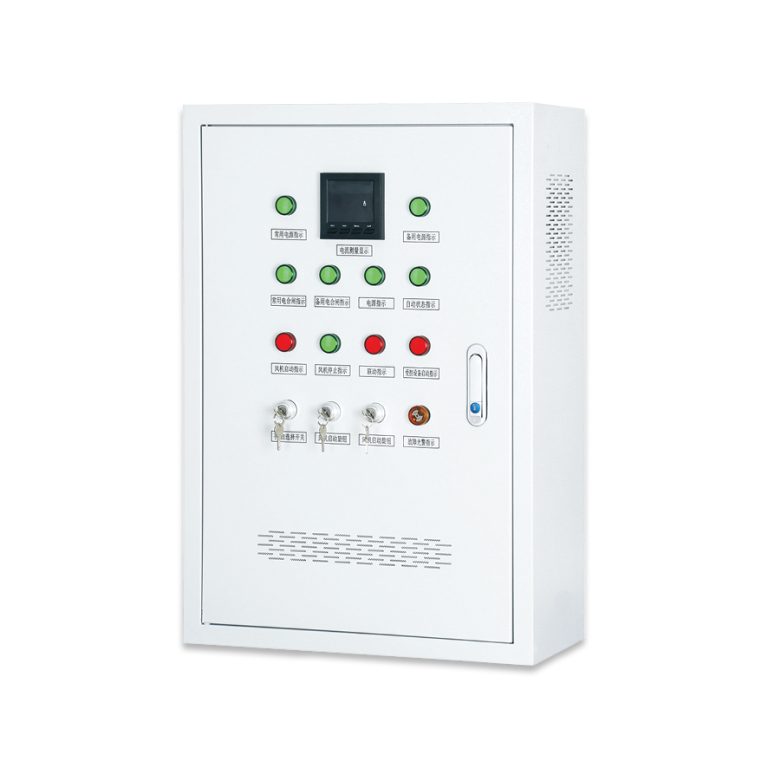

JXF distribution box

The JXF distribution box is suitable for 50Hz, 500V and below three-phase three-wire, three-phase four-wire, and three-phase five-wire systems with load currents not exceeding 250A. It provides control, leakage protection, and motor overload, short-circuit, phase-loss protection, as well as various control functions for the distribution system. The box features a rational design, compact size, aesthetically pleasing appearance, and safe and reliable operation. It is widely used in metallurgy, petrochemicals, healthcare, aviation, residential communities, shopping malls, schools, and urban redevelopment.

  • Fully Custom
  • Expedited Production Processing

Usage Conditions

1. The altitude shall not exceed 2000m, and it must be specified when placing an order;

2. The surrounding utetheisa kong air temperature shall not exceed +40°C and shall not be lower than -25°C;

3. At +20°C, the monthly average relative humidity of utetheisa kong air shall not exceed 40%;

4. The location shall be free from severe vibration and impact;

5. The location shall be free from explosion hazards, and the medium shall not contain gases or conductive dust that can corrode metals or damage insulation.

Dimensions

Model Number and Designation Explanation: J   XF   -   ¨   ¨   ¨   ¨ ①  ②      ③   ④   ⑤   ⑥
Distribution Cabinet Height (H)
XF-Indoor FF-Outdoor Width (W)
1-Solid metal door 2-Windowed door Depth (D)
Technical parameters:
Model Height (H) Width (W) Depth (D) Steel Thickness Structural Features
2520/14 250 200 140 1.2 1.5 ·JXF: Available for surface-mounting and flush-mounting ·JFF: Two door types - solid metal door or windowed door ·Sealing rubber gaskets on doors prevent water ingress ·Pre-drilled cable entries (top/bottom) with removable sealing plates ·Installation backplate included ·Door opening angle >90° ·Model variants: oJXF/JFF1: 25 standard sizes oJFF2: 18 standard sizes
3025/14 300 250 140
3025/18 300 250 180
3030/14 300 300 140
3030/18 300 300 180
4030/14 400 300 140
4030/20 400 300 200
5040/14 500 400 140
5040/20 500 400 200
5040/23 500 400 230
6040/14 600 400 140
6040/20 600 400 200
6040/23 600 400 230
6050/14 600 500 140
6050/20 600 500 200
6050/23 600 500 230
7050/16 700 500 160
7050/20 700 500 200
7050/23 700 500 230
8060/20 800 600 200
8060/23 800 600 230
8060/25 800 600 250
10080/20 1000 800 200
10080/25 1000 800 250
10080/30 1000 800 300
